Overhead Door's RapidGrille® Model 676 | High-Speed Security Grille

Posted by Overhead Door Expert on Nov 19, 2020 1:19:00 PM

The RapidGrille®​ Advanced Performance Security Grille provides facilities with visual access and maximized air movement while delivering better safety features than a standard security grille

Every client's security grille needs are different, but this new product developed by Overhead Door can be useful for a wide variety of businesses, including parking garages, loading docks, performance venues, manufacturing facilities, or retail businesses -- basically anywhere that a client needs to make a location secure but also wants a grilled that's safe yet simple, and easy to minimize when it's not needed.

RapidGrille - High Speed Security GrilleRapidGrille® - High-Speed/High-Performance Security Grille

Contact Us


RapidGrille®'s Main Features:

Some of the state-of-the-art features of the new product include:

✓ Max. Standard Width: 30'4" (9,246 mm) | Max. Standard Height: 14’4" (4,369 mm)

✓ Curtain:
Galvanized steel links and solid rods with mill aluminum spacer tubes

✓ Curtain Pattern:
Straight lattice 9" center vertical links with 2" center rod spacing

✓ Door Roll:
Directly driven, springless steel tube roll with integral shafts, keyed on the drive end and supported by self-aligning grease-able sealed bearings

✓ Hood:
24 gauge black painted steel

✓ Guides:
Three structural steel angles with PowderGuard® Premium finish with black powder coat

✓ Bottom Bar:
Tubular extruded aluminum with mill finish​​​​​​​​​​​​​​​​​​​​​​

✓ Standard Mounting: Face of wall ​​

✓ Operation: Direct drive, integrated gear motor/brake assembly (up to 24” per sec up speed / 12” per sec down speed); drive assembly and limit sensors are factory pre-assembled. Manual hand chain for a power outage. Horsepower is appropriate to the size and weight of the door. 230V AC 3-phase motor (operating range 208-245V)

✓ Control Panel: NEMA 4X rated; variable frequency drive, self-diagnostics, built-in cycle counter, and timer to close​​​​​​​​​​​​​​​​​​​​​​​​

✓ Safety Devices: Built-in braking mechanism provides additional peace of mind against uncontrolled curtain travel.

✓ Wireless, Monitored Safety Edge - all doors are equipped with a mandatory reversing or sensing edge to prevent entrapment.

✓ Photoelectric Safety Sensors with Guards - provide additional safety during door operation to help prevent injury and damage.

✓ Limited Warranty - 60-month on motor; 24-month/300,000 cycles on door components​​​​​​​​​​​​​​​​​​​​​​​​​

RapidGrille® - High-Speed/High-Performance Security Grille Parking Garage Door in NYC - Security GrilleRapidGrille® - High-Speed/High-Performance Security Grille

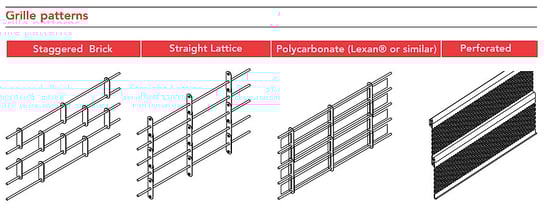

RapidGrille Model 676 customers can choose a straight lattice pattern or optional brick pattern, and can also select a complete steel curtain; a powder-coated curtain; or a grille that contains aluminum links and spacer tubes.

RapidGrille PatternRapidGrille® Patterns

Grille controls and operation details can be found right at your fingertips, in the form of an interactive panel that displays info about the opening and closing cycle, a closing timer, and any helpful system diagnostics.

Foeng Tjong, Overhead Door's commercial product manager for rolling products, said the Model 676 has been engineered to perform at high levels over long periods of time.

For more information, please give us a call at 973-471-4060 or email us at: info@dockndoor.com

You can read more about our security grilles here and about high-performance overhead doors here.

For 24-hour emergency service, please contact us at 973-471-4060.

We service Northern New Jersey (Bergen, Passaic, Hudson, Union, Essex, Morris, Hudson, Hunterdon, Middlesex, Mercer and Somerset county/counties), Manhattan, New York City, Brooklyn, Queens, Staten Island, Bronx, Westchester, and Rockland.

Request an Estimate





Tags: advanced rolling doors, roller shutter, commercial doors, commercial overhead doors, security doors, garage door companies, overhead doors nj, security grille, roller shutters, rolling doors, rolling door, commercial and industrial doors, security grilles, Overhead Door Company, overhead door, overhead doors, commercial overhead door, RapidGrille Model 676, RapidGrille, Commercial garage doors bergen county, high-speed security grille, high-performance security grille

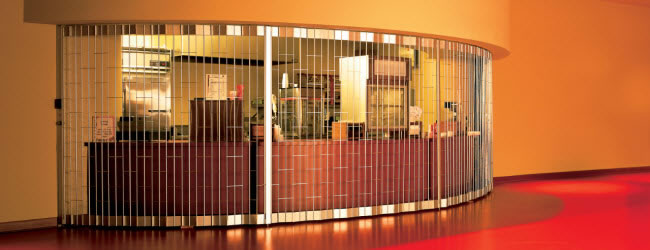

Side-Folding Air-Open Security Grilles 681 Series by OHD Corporation

Posted by Wilford Ordoñez on Feb 15, 2016 9:48:15 AM

If you have an application requiring reliable security, but you also desire to provide maximum visibility for your location interiors, we have just the right options. The 680 Series Security Grille Grilles are slide-folding doors that give you stylized and long-term rugged service.

The Model 681 is designed to offer a number of customized selections and options to fit your specific needs. You have the advantage of the security you desire while leaving your inventory on secure display and maintaining full circulation throughout.

Ideal for retail, malls, airport concourses, and entertainment venues, these grilles protect against debris and theft while maintaining an open and stylish appearance. In addition to a standard clear anodized finish, you can choose from 215 colors in the PowderGuard™ Premium Color Chart, or you can select a custom color with the color-matching option.


When you choose the 681 security grille as your rolling door option, you will have the peace of mind you have selected a door designed and crafted to meet and exceed your needs. This includes allowing you to choose from among multiple options and alternatives. These include:

- Standard or wide-body track curves
- Radius of 14” or 22”
- Post types for lead, intermediate, and trailing end post
- Locking mechanisms that include (depending on the post) concealed cylinder, shoot bolt, and self-locking into a steel V-Stop.
- Curtain patterns, colors, and finishes

Your choices for these and other options will provide you with the specific security grille you need to meet your desires and expectations.

Contact Us

Other Side-Folding Security Grille Models

Click on any of the images below to learn more about other side-folding security grilles that are available at Overhead Door Company of the Meadowlands & NYC.

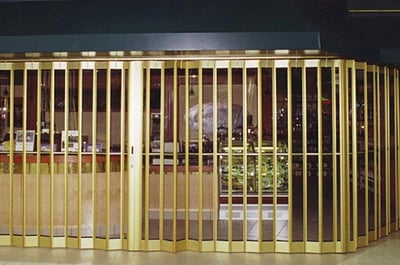

Side-Folding Full Enclosure Security Grille Models 675/677/678/679NYC NJSide-Folding Full Enclosure Security Grille Models 675/677/678

Side Folding, Full Enclosure Security Grilles Model 679Side-Folding Full Enclosure Security Grille Models 679

The highly experienced team at Overhead Door Company of The Meadowlands & NYC knows how to install your grille exacting manufacturer standards, and you will receive a 24-month OEM-limited warranty. Our goal is to provide you with the security grille that will provide durable and rugged performance for years to come.

For more information, please give us a call at 973-471-4060 or email us at: info@loadingdock.com
Contact Us

We service Northern New Jersey (Bergen, Passaic, Union, Essex, Morris, Hudson, Somerset county/counties), Manhattan, New York City, Brooklyn, Queens, Staten Island, Bronx, Westchester and Rockland.




Tags: security doors, security grille, security grilles, RapidGrille, Rolling Grille, security grille system, Security Grilles 671 Series, security gate, Security Grilles 674 Series by Overhead Door Corp., Security Grilles 675 Series, grilles, Security, Rolling Grilles, Security Grilles 677, Side-Folding Full Enclosure Security Grilles, Side-Folding Open Air Security Grilles, Security Grilles 678, Security Grilles 681

Side-Folding Open Air Security Grilles 683 Series | NYC & NJ Area

Posted by Wilford Ordoñez on Feb 12, 2016 9:32:19 AM

If you have an application that provides public access, but your location or office must be restricted at times, an overhead security grille is often the perfect solution. Overhead Door Corporation provides a superior series of security grilles that provide attractive and reliable options for your customized needs.

Side Folding Open Air, Side-Folding Security Grilles - Model 683 NYC NJ​​​​​​​​​​​​​​​​Side-Folding Security Grille

Side-Folding Security Grilles Designed for Style, Security, and Performance

Our side-folding, open-air security grilles allow for continuous air circulation and maximum visibility of interior spaces, even when fully secured. This makes the grill an excellent choice for schools, entertainment venues, malls, offices, and airport concourses. The 683 security grille is designed to provide a maximum height of 12 feet and can address as wide a space as possible.

Side-Folding Security Grille NYC NJ

This model boasts a wide range of options and features that allows the unit to meet your needs for multiple applications. These include different curtain colors, patterns, and finishes. The eco-sensitive PowderGuard™ Finish Options provide more than 215 standard colors in the PowderGuard™ Premium Color Chart, and you can also select the color-matching option to choose a color for your security grille.

Contact Us


Other Side-Folding Security Grille Models

Click on any of the images below to learn more about other side-folding security grilles that are available at Overhead Door Company of the Meadowlands & NYC.

Side-Folding Full Enclosure Security Grille Models 675/677/678/679NYC NJSide-Folding Full Enclosure Security Grille Models 675/677/678

Side-Folding Open Air Security Grilles Models 681 and 683 NYC & NJ
Side-Folding Open Air Security Grille Models 681 - To Maximize Air Circulation

Side Folding, Full Enclosure Security Grilles Model 679Side-Folding Full Enclosure Security Grille Models 679

Contact Us

Multiple Options and Alternatives for Your Security Grilles

The model 683 security grille comes with a clear anodized finish and truss-like aluminum top and bottom plates of 1/8”. The post types include:

   - Lead post of hook lock and wall channel, bi-part, top and bottom shoot bolts
   - Intermediate post with a bottom-shoot bolt
   - Trailing-end post with traveling, fixed, hook lock and wall jamb, top and bottom shoot bolts, and carrier

Each of the post types has different locking mechanisms, ranging from concealed cylinder-operated to plate self-locking into a steel V-Stop.

Overhead Door Company of The Meadowlands & NYC, a division of Loading Dock, Inc., will ensure your grille is installed to exacting standards, and our precision maintenance will support the OEM limited 24-month warranty to ensure the long, durable and reliable performance of this security grille.

For more information, please give us a call at 973-471-4060 or email us at: info@loadingdock.com
Contact Us

We service Northern New Jersey (Bergen, Passaic, Union, Essex, Morris, Hudson, Somerset county/counties), Manhattan, New York City, Brooklyn, Queens, Staten Island, Bronx, Westchester and Rockland.

Tags: security doors, security grille, security grilles, security grille system, security gate, Security Grilles 675 Series, grilles, Security, Rolling Grilles, Security Grilles 677, Side-Folding Full Enclosure Security Grilles, side screen shutters, side coiling screen doors, Side-Folding Open Air Security Grilles

Side Folding Full Enclosure Security Grilles ​Model 679 | NYC & NJ

Posted by Wilford Ordoñez on Feb 9, 2016 7:55:26 AM

If you have an application or project that calls for a quality side-folding full enclosure security grille, you won’t find a better option than the model 679 from Overhead Door Corporation. This side-folding full-closure grille provides full security against theft and debris while providing visibility and full ventilation. If no visibility is desired, we can offer the full-height solid aluminum panels to slide into aluminum hinges.



Ideal for retail applications in airports, malls, and other areas, this product line is designed for maximum dependability and uses quality materials. Panel options include:

   - Tempered glass
   - Clear polycarbonate
   - Perforated steel
   - Aluminum



Multiple Features and Options

The security grille model 679 is available in either standard-body or wide-body configurations, and both use top-mounted, heavy-duty aluminum sections. The curtain frame uses truss-like aluminum top and bottom plates of 1/8th inch thickness.

Door options include custom radii and curves, thumb-turn guards, and vertical adjustments for upward and downward.

Side_Security_Grilles_679Side-Folding Full Enclosure Security Grille

Post types and locking mechanisms include:

  • Lead post: Hook lock using a wall channel with bi-part, top and bottom shoot bolts; Lock with concealed cylinder-operated hook lock (accessible from interior and exterior)
  • Intermediate post: Bottom shoot bolt; Lock with concealed cylinder-operated hook lock (accessible from only one side)
  • Trailing end post: Traveling, fixed, hook lock and wall jamb, top and bottom shoot bolts, carrier; Lock with attached 10' max. (3048 mm) protection plate self-locking into a steel V-Stop

This model has more than 215 color options for its powder-coat finish, and custom color-matching is available.

The model 679 series is just one of many great solutions you will find for your commercial doors and security grilles needs. In addition to superior design and workmanship, you’ll find we provide quality installation and ongoing maintenance that will ensure years of durable and problem-free use. The unit is also protected by a 24-month OEM limited warranty.

Other Side-Folding Security Grille Models

Click on any of the images below to learn more about other side-folding security grilles that are available at Overhead Door Company of the Meadowlands & NYC.

Side-Folding Full Enclosure Security Grille Models 675/677/678/679NYC NJSide-Folding Full Enclosure Security Grille Models 675/677/678

Side-Folding Open Air Security Grilles Models 681 and 683 NYC & NJSide-Folding Open Air Security Grille Models 681 - To Maximize Air Circulation

For more information, please give us a call at 973-471-4060 or email us at: info@loadingdock.com * We offer 24-hour emergency service to existing customers.
Contact Us


We service Northern New Jersey (Bergen, Passaic, Union, Essex, Morris, Hudson, Somerset county/counties), Manhattan, New York City, Brooklyn, Queens, Staten Island, Bronx, Westchester and Rockland.



Tags: security grille, security grilles, security grille system, security gate, grilles, Security, curtain grille rolling doors, Side-Folding Full Enclosure Security Grilles, Side-Folding Open Air Security Grilles

NYC Roll-down doors and gates visibility requirements

Posted by Jai Patel on Nov 2, 2015 3:02:28 PM

Roll-down gates or roll-up doors, are under scrutinity from the department of buildings.  A few years ago, the City Council passed a resolution requiring all storefront shutters, mesh gates, open air shutters, coiling grille gates, coil-up doors and roller gates to have 70% or more in visibility.  The code is forever changing our city's landscape.  We feel it is upgrading the city's look to one that favors a safer and more business friendly environment.
