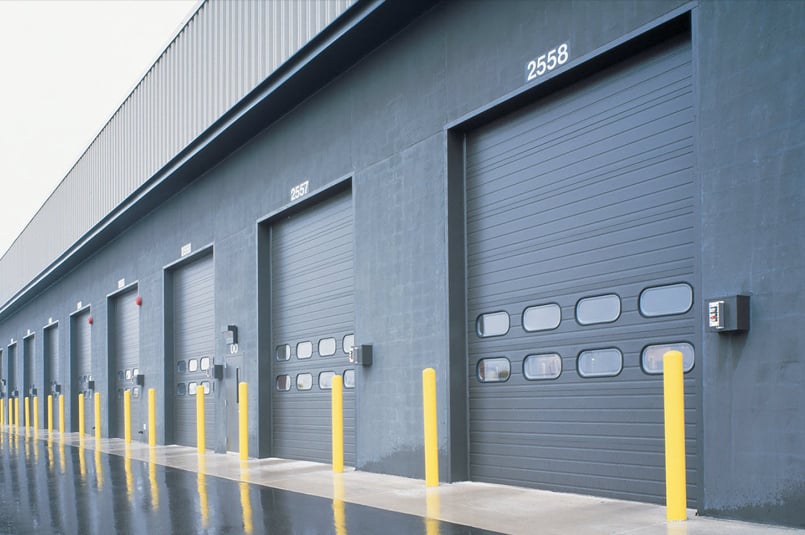

  • Thermacore Sectional Door 591 Wide

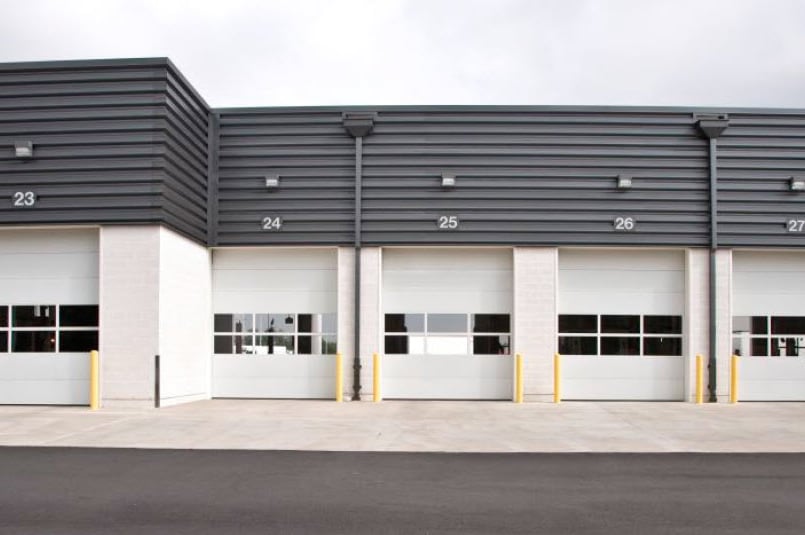

  • Sectional Steel Door 418 Wide

Overhead Door Company of The Meadowlands & NYC offers an extensive line of non-insulated sectional steel and insulated sectional steel doors and products that encompass one of the industry's most complete selection of panel profiles, gauges, track styles and hardware for commercial sectional door systems.

Door Options​:

​​- Glazing choices include DSB glass, plexiglas, tempered glass, clear lexan, wire glass and polycarbonate.
- Full-section or individual-panel glazing satisfies requirements for external light and visitor identification
- Higher-cycle springs in optional 25k, 50k, 75k or 100k-cycles promote long-life in high-usage applications
- Solid construction withstands wind loading of 20 psf, with a higher wind load option to meet additional requirements
- Optional steel strutting provides reinforcement for structural integrity on wider doors
- Electric and chain hoist operation, aluminum sash sections with choice of DSB, acrylic, polycarbonate, tempered, or wire glazing, as well as movable center posts, 3" (76 mm) track and jamb seals​

Features​:

​​- 16, 20, or 24-gauge steel door panels results in a solidly constructed door for years of dependable service
- Standard steel doors available in sizes up to 32'2" (9804 mm) in width; 24'1" (7341 mm) in height
- Insulated steel doors available in up to 30'2" (9195 mm) in width; 24'1" (7341 mm) in height
- Heavy-duty track and hardware are fabricated of high-quality galvanized steel and engineered for precise, trouble-free performance
- Flexible PVC bottom weatherseal lessens conductivity of heat and cold, minimizes air and water penetration, and accommodates irregular floor conditions
- Insulated steel doors provide thermal efficiency with an R-value of 7.35
- Baked-on, polyester paint finish eliminates field painting and provides long-lasting protection against the elements
- Superior panel strength and well-engineered track are designed to meet many wind load requirements and codes​​


Insulated Sectional Steel Doors

insulated sectional steel door ​​​model 418​ Insulated sectional steel door ​​​model 418​
Our high-quality, heavy-duty door provides protection against hot and cold environments. Fabricated of 16-gauge, flush galvanized steel exterior, these 2" (51 mm) thick doors offer an R-value of 7.35. A wide array of options allow these doors to meet the most stringent project requirements that call for a degree of thermal efficiency.
- Max Width: 30'2'' (9195 mm)
- Max Height: 21'1'' (6426 mm)
- Insulation: Up to R-Value 7.35

insulated sectional steel door model 422 Insulated sectional steel door model 422
Ideal for heavy-duty applications requiring protection against the elements. These doors feature a 2" (51 mm) panel thickness with 7.35 R-value and 20-gauge ribbed steel exterior. A multitude of options allow these insulated heavy-duty doors to be used in a variety of commercial and industrial applications.
- Max Width: 29'2'' (8890 mm)
- Max Height: 24'1'' (7341 mm)
- Insulation: Up to R-Value 7.35

insulated sectional steel door model 426 ​​Insulated sectional steel door model 426
Ideal for heavy-duty applications requiring protection against the elements. These doors feature a 2" (51 mm) panel thickness with 7.35 R-value and 24-gauge ribbed steel exterior. A multitude of options allow these insulated heavy-duty doors to be used in a variety of commercial and industrial applications.
- Max Width: 28'2'' (8585 mm)
- Max Height: 24'1'' (7341 mm)
- Insulation: Up to R-Value 7.35

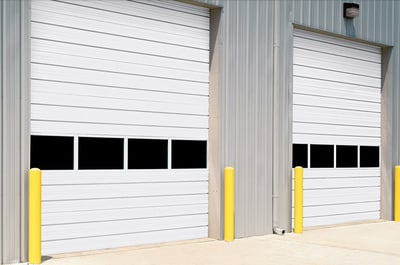

insulated sectional steel door model 432 Insulated sectional steel door model 432
Offers a 2" (51 mm) panel thickness, a nominal 24-gauge ribbed galvanized steel exterior and a poly-bonded back cover. Polystyrene insulation provides an R-value of 7.35. A variety of options make this door an economical solution for applications requiring a medium-duty insulated steel door.​​​
- Max Width: 20'2'' (6147 mm)
- Max Height: 16'1'' (4902 mm)
- Insulation: Up to R-Value 7.35



Non-Insulated Sectional Steel Doors

The non-insulated sectional steel door model 416 feature flush panel designs that are strong, durable and versatile. Featuring 16-gauge galvanized steel these doors are designed for heavy-duty commercial and industrial applications, these doors also offer many optional features that allow you to make a bold design statement without compromising functionality.​​​
- Max Width: 32'2'' (9804 mm)
- Max Height: 21'1'' (6426 mm)



The non-insulated sectional steel door model 420 feature a ribbed exterior and are strong, durable and versatile. Featuring 20-gauge galvanized steel these doors are designed for heavy-duty commercial and industrial applications, these doors also offer many optional features that allow for meeting nearly any project requirement.​​​
- Max Width: 31'2'' (9500 mm)
- Max Height: 24'1'' (7341 mm)



The non-insulated sectional steel door model 424 feature a ribbed exterior and are strong, durable and versatile. Featuring 24-gauge galvanized steel these doors are designed for heavy-duty commercial and industrial applications, these doors also offer many optional features that allow for meeting nearly any project requirement.​​​
- Max Width: 30'2'' (9195 mm)
- Max Height: 24'1'' (7341 mm)


The non-insulated sectional steel door model 430 is available in sizes up to 20'2" in width and 16'1" in height for a variety of medium-duty applications. These doors feature a 2" (51 mm) panel thickness and a nominal 24-gauge ribbed, white galvanized steel exterior. The 430 Series is customizable to any project specification and offers a variety of available options. ​​​​​​​​​​​
- Max Width: 20'2'' (6147 mm)
- Max Height: 16'1'' (4902 mm)
