Non-Insulated & Insulated Metal Slat Coiling Doors in NYC & NJ

Posted by Jai Patel on Jun 2, 2020 10:21:00 AM

Non-insulated & insulated metal slat coiling doors/rolling service doors are offered by Overhead Door Company of the Meadowlands & NYC. Constructed of galvanized steel, stainless steel or aluminum in a variety of slat profiles, finishes and options. These strong, durable flat and curved slatted metal coiling doors are designed for ultimate security. Available in various mounting configurations to accommodate almost any size opening.

Coiling Service Door, Rolling Service Door Model 620, Slat F-265Coiling Door Model 620, Slat F-265

- Standard doors are designed to meet 20psf (90mph to 110mph) wind resistance.
- Higher wind load and seismic validation available.
- Perimeters’ sealing are designed to reduce air leakage and keep climate-controlled air in and the elements out.
- Extra heavy-duty slats fabricated of galvanized steel in up to 14 gauge with a curved profile
- Designed but not limited to oversized applications where herculean size and strength are required.

Insulated Metal Slat Overhead Rolling Doors

Insulated rolling service doors are used when durability, security, overall performance and thermal efficiency are required.

- Standard door is designed for 20psf (90mph to 110mph) wind resistance.
- Perimeters’ sealing are designed to reduce air leakage and keep climate-controlled air in and the elements out.
- Roll-formed flat slats sandwich CFC and HCFC free polyurethane insulation to provide extra protection against the elements with R-values up to 10.9, U-Factor of no higher than 1.00, through curtain STC up to 28, and install STC up to 21.
- Weather seals reduce the number of air exchanges between two climate/temperature-controlled environments through a fenestration assembly, such as door or window. When it comes to perimeter sealing more is found to be better.
- When selecting an insulated door, it is important to review IECC (International Energy Conservation Code) requirements.
- Calculated R-value (also known as U-value) is an ASHRAE calculation of the thermal resistance property of a material.
- Tested U-factor provides actual installed door energy transfer resistance and solar heat gain coefficient (SHGC). Energy transfer is the exchange of energy between two climate-controlled environments. Solar heat gain coefficient is the amount of solar heat being absorbed by the door system. Generally, finish or color with high solar reflectance (bright colors) will provide lower solar heat gain coefficient and therefore lower U-factor. Lower tested U-factor provides lower energy transfer and lower solar heat gain.

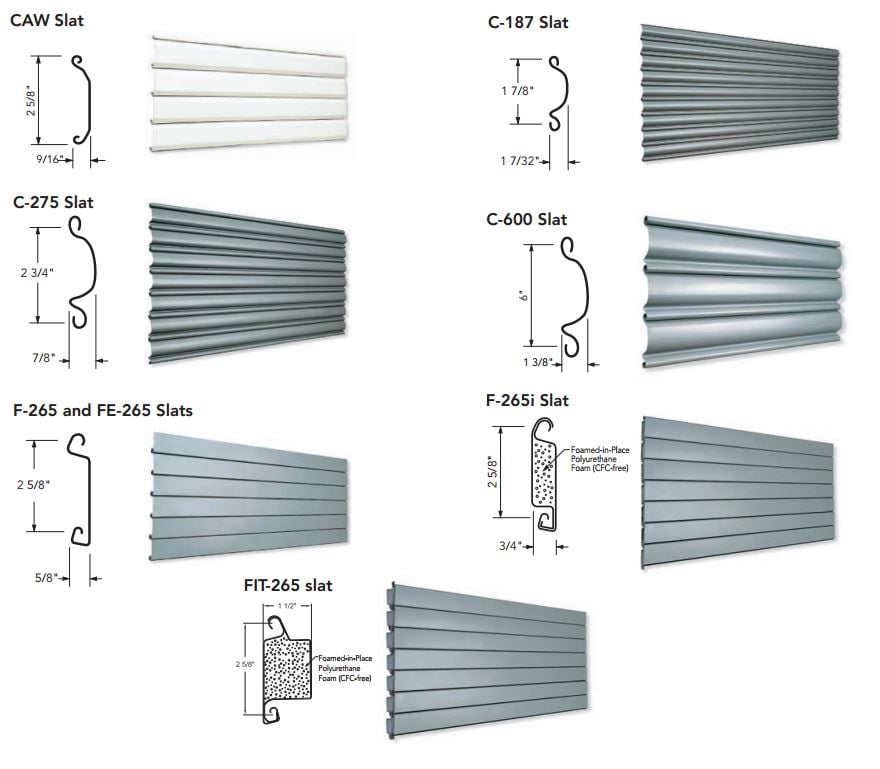

Metal Stlat Types:


C-275 Slat for Coiling Doors, Roll Up Doors

F-265 & FE-265 Slats for Coiling Doors, Roll Up Doors
C-600 Slat for Coiling Doors, Roll Up Doors
FIT-265 Slat for Coiling Doors, Roll Up Doors
CAW Slat for Coiling Doors, Roll Up Doors
C-275 Slat for Coiling Doors, Roll Up Doors
C-187 Slat for Coiling Doors, Roll Up Doors



Fenestrated Slat Close-Up View

F265 with 10inch by 1inch fenestrationF265 with 10" by 1" fenestration Curved slatCurved slat with 3" by 5/8" fenestration



Examples of Metal Slat Coiling Doors/Rolling Service Doors:

Rolling Door Model 625S Wide in NYC NJ-2Rolling Door Model 625S Wide for Heavy-Duty Aplications

Coiling Service DoorAllura® Rolling Shutter Model 653 - Light-Duty Rolling Service Door

Rolling Service Door in New JerseyRolling Service Door Model 610 - Heavy-Duty Rolling Service Door

Coiling Service Door, Rolling Service Door Model 610-1
Rolling Service Door Model 610 - Heavy-Duty Rolling Service Door

Coiling Service Door, Rolling Service Door Model 610 1Rolling Service Door Model 610 - Heavy-Duty Rolling Service Door

For more information, please give us a call at 973-471-4060 or email us at: info@dockndoor.com. For 24-hour emergency service, please contact us at 973-471-4060.

Contact Us

We service Northern New Jersey (Bergen, Passaic, Union, Essex, Morris, Hudson, Somerset county/counties), Manhattan, New York City, Brooklyn, Queens, Staten Island, Bronx, Westchester and Rockland.



Tags: Metal Slat Rolldown Door, Metal Slat Overhead Doors, Metal Slat Rolling Doors, Insulated Slat Stainless Steel Doors, Overhead Door repair, Rollup Door repair

Low Headroom Sectional and Rolling Overhead Doors for Tight Spaces

Posted by Jai Patel on Nov 5, 2019 12:23:00 PM

In NJ and New York City, space is a premium.  There are really 3 different ways to do an overhead door or rolling door with low headroom (also known as low clearance garage door or low profile garage door). Below you will find a quick guide with a comparison chart at the end for those looking for a low headroom sectional and rolling overhead door for tight spaces:

Three Ways to Install a Sectional Overhead Door or a Rolling Door With Low Headroom:

1. Install a High-Performance Rolling Door for Low Clearance

- These doors are appropriate for high-traffic situations while meeting the low headroom/low clearance requirements of parking garages and other commercial structures.
- The low lintel design only needs 11 inches of clearance at headroom.
- The motor is compact with variable speeds allowing up to 60 inches per second.  It has soft acceleration and deceleration for smooth starts and stops.

Rytec Spiral® LH® High-Performance Door (Low-Headroom) NYC NJRolling Overhead Door for Low Clearance Garage Doors

Request an Estimate

2.  Install a Sectional Garage Door with Low Headroom Torsion Springs in Front

- Track is applicable for building applications where headroom is limited and standard track will not work.
- Springs are mounted at the front of the horizontal track.
- Trolley motor operator or push up operation required, not applicable for jackshaft type operators.

low_head_room_garage_sectional_door_torsion_springs_in_front.jpgOverhead Door with Low Headroom Torsion Springs in Front



 Request an Estimate



3.  Sectional Garage Door with Low Headroom Torsion Springs in Rear / Low Clearance Garage Door

- Track is applicable for building applications where headroom is severely limited.
- Springs are mounted at the rear of the horizontal track.
- Trolley motor operator or push up operation required, not applicable for jackshaft type operators.
- This is not recommended for medium to high usage and cycle environments.

low_head_room_sectional_garage_door_torsion_springs_in_rear.jpgSectional Overhead Doors with Low Headroom Torsion Springs in Rear



Sectional Steel Door with Low HeadroomSectional Overhead Door with Low Headroom Torsion Springs in Rear

Request an Estimate

Cost Comparison Chart

The below chart will help you understand the best product for your unique building.

#1 - High-Performance Rolling Door for Low Clearance
#2 - Sectional Door with Low Headroom (torsion spring in front)
#2 - Sectional Door with Low Headroom (torsion spring in in rear)

  High-Performance Rolling Door for Low Clearance Sectional Door w/Torsion Springs in Front Sectional Door w/Torsion Springs in Rear
Acquisition Cost $$$$$ $$ $$
Cost of Ownership During Operation $ $$$ $$$$$$
Warranty 5yr Mechanical
2yr Electrical , 2yr Door Panels
1yr Warranty, but No Warranty Over 10 Cycles a Day 1yr Warranty, but No Warranty Over 10 Cycles a Day
Cycle Life 1M+ <20K <10K
Emergency Egress Release Standard Not Available Not Available
Long-Term ROI for High-Cycle Applications star.pngstar.pngstar.pngstar.pngstar.png star.pngstar.png No Stars



To learn more about other options, check out our product catalog and choose the right commercial door and dock for your facility. Spend some time looking at the sectional doorsrolling steel doors, other industrial doors and the accessories like commercial operators that you can find at the Overhead Door Company of The Meadowlands & NYC (Division of Loading Dock, Inc.). You will appreciate not only our amazing selection but also the level of customer service and care you receive from our team of overhead door experts. You can also read other entries in our blog.

For more information, please give us a call at 973-471-4060 or email us at: info@dockndoor.com

We service Northern New Jersey, Manhattan, New York City, Brooklyn, Queens, Staten Island, Bronx, Westchester and Rockland.



Contact Us

Tags: sectional steel doors, high speed door, parking garage door, Commercial Overhead Doors with Low Head Room, Sectional Panel Doors, low clearance garage doors, tight head room, low headroom rear torsion, low headroom front torsion, low clearance gate, low clearance roll down door, low clearance garage door, low headroom overhead doors, tight space garage door, limited header space garage door

We are Subcontractor of the Year!

Posted by Jai Patel on Nov 30, 2018 6:01:26 PM



OVERHEAD DOOR FULL LENGTH 11-26



LOADING DOCK INC. / OVERHEAD DOOR COMPANY OF THE MEADOWLANDS & NYC was awarded as the Subcontractor of the Year by the American Subcontractor Association.

 NJSA logo

loading dock inc overhead door company subcontractor of the year postcard-1



Thank you to our customers, employees, suppliers, partners, mentors, friends, family & fellow NJSA members for supporting the growth of our organization. You believed in us!  Thank you!

american-subcontractors-assn. logo

Muse Paint Bar Glass Sectional Rolling Overhead Door

Posted by Jai Patel on Mar 14, 2016 7:08:04 AM



muse-paint-bar-logo

Muse Paint Bar hired our team to install a 521 Series Modern Aluminum Sectional Glass Garage Door for their paint bar business in Yonkers, NY.  This storefront glass garage door is used as a partition to separate their paint class area from main open layout.

A glass roller garage door can be custom powder coated to any color.  The metal stiles and rails of aluminum material can be insulated as well to reach a R and U value.  Different glass or glazing can be used.

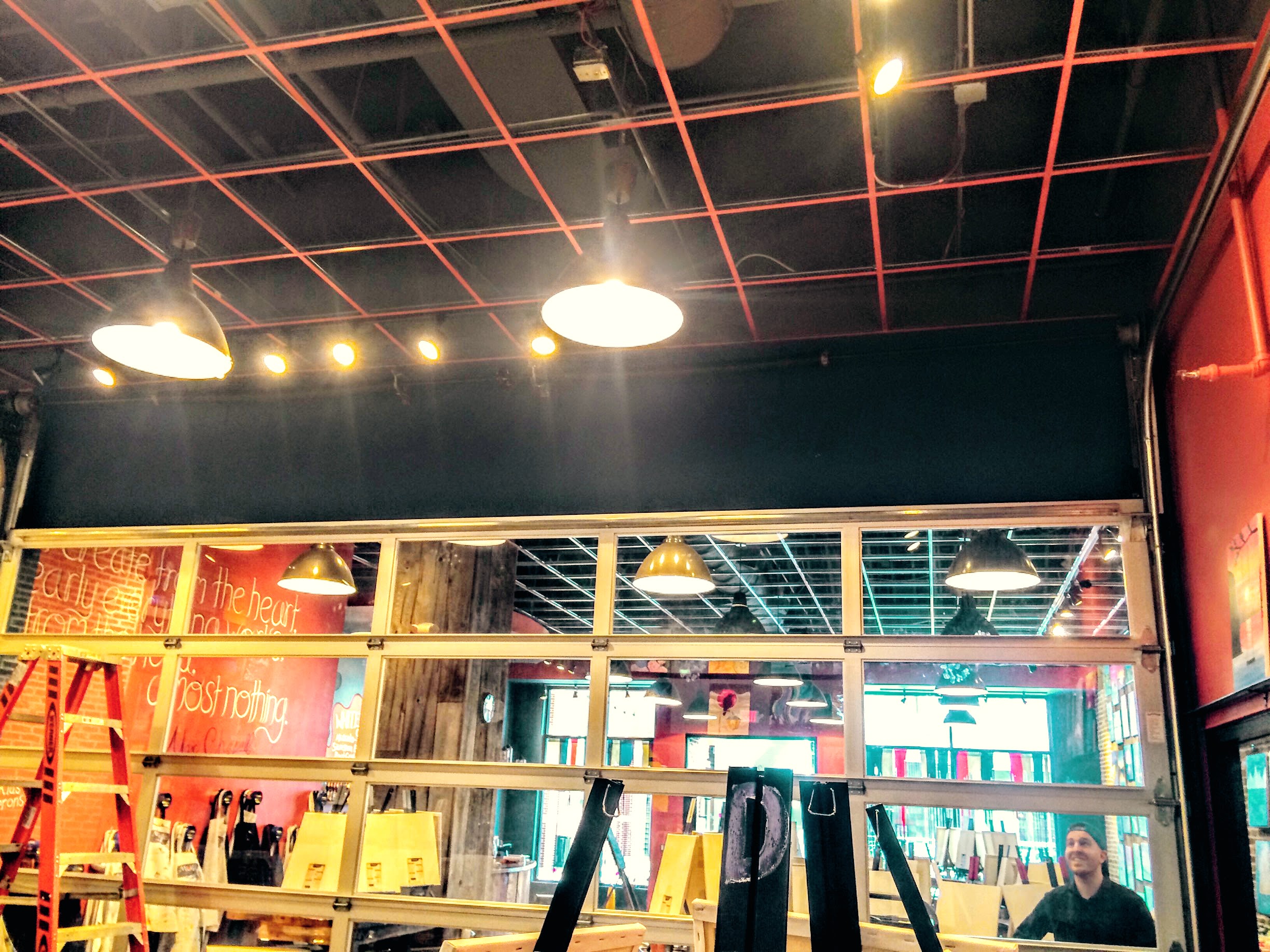

Muse Paint Bar with aluminum glass garage door in Yonkers, NY

Request an Estimate

Muse Paint Bar with aluminum glass garage door in Yonkers, NY

 * The above photo is our installation at the Yonkers, NY location.

Contact Us

For more information, please give us a call at 973-471-4060 or email us at info@dockndoor.com

For 24 hour emergency service, please contact us at 973-471-4060.

We service Northern New Jersey (Bergen, Passaic, Hudson, Union, Essex, Morris, Hudson, Hunterdon, Middlesex, Mercer and Somerset county/counties), Manhattan, New York City, Brooklyn, Queens, Staten Island, Bronx, Westchester and Rockland.



Tags: rollup glass doors, 521 Series, overhead door 521 series, partition, glass garage doors, sectional aluminum overhead door, anodized finish, aluminum overhead door, metal glass garage door, garage door wall system, storefront garage door, muse paint bar, office partition

Glass & Aluminum Metal Rollup Gates for The Pennsy Food Hall

Posted by Jai Patel on Mar 7, 2016 11:28:30 AM

As a business owner you have to think in different ways to make your store, bar or restaurant more appealing to your potential customers. Our glass & aluminum metal rollup gates, also known as aluminum glass overhead doors, are a great option to consider if you're looking for a highly funcional, durable, clean,  modern/contemporary look. These are a wonderful addition that not only add aesthetic, but also make your space appear more open as well.

Our glass and aluminum metal rollup gates are being used by restaurants, bars, food courts, breweries, tourist offices, bowling alleys and auto dealerships all over the country as they are an ideal choice for business that want their interiors visible to their customers.

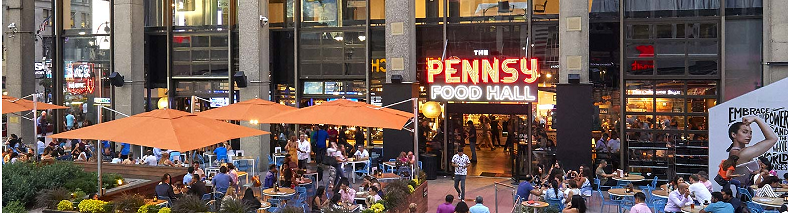

The Penny Food Hall Photo by NYCgo

Benefits of Glass & Aluminum Metal Rollup Gates

Some additional key benefits that these aluminum glass doors can bring to your business are:

- Natural light: They allow natural light to enter.
- Energy efficiency: One of the biggest advantages of installing aluminum glass overhead garage doors is the energy efficiency they offer. There is a wide variety of insulation choices and high R-value ratings that you can choose from, which will help to keep heating and cooling costs down.
- Durability: Aluminum glass doors are very durable
- Lightweight: Having a lighter door will extend the lifespan of the opening and closing mechanism and torsion spring. With less maintenance required, comes lower operating costs.
- Modern/Contemporary look: If you're looking for a polished look, the aluminum glass doors are ideal.
- Non-Corrosive: Aluminum overhead garage doors are non-corrosive, which means they will not rust and will be able to withstand exposure to weather conditions.

Aluminum Glass Overhead Door Installation

Recently, our SuperTechs furnished and installed four sectional glass and aluminum overhead doors at The Pennsy Food Hall at 2 Penn Plaza within the Madison Square Garden Complex.





Request an Estimate

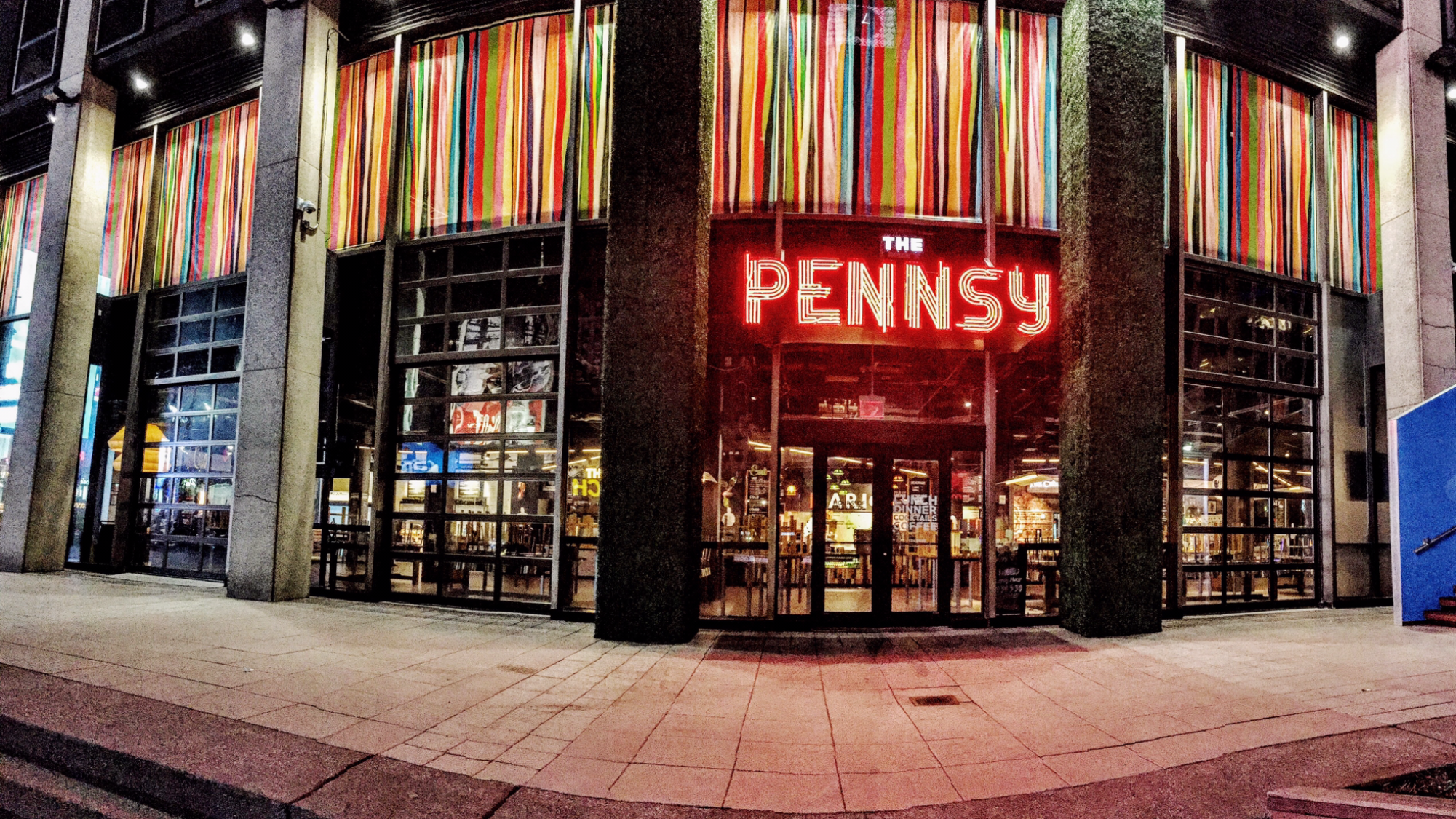

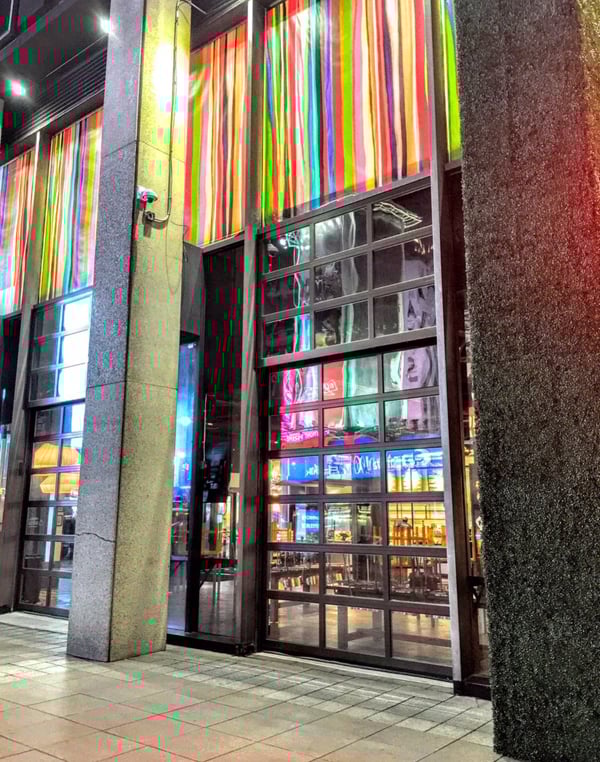

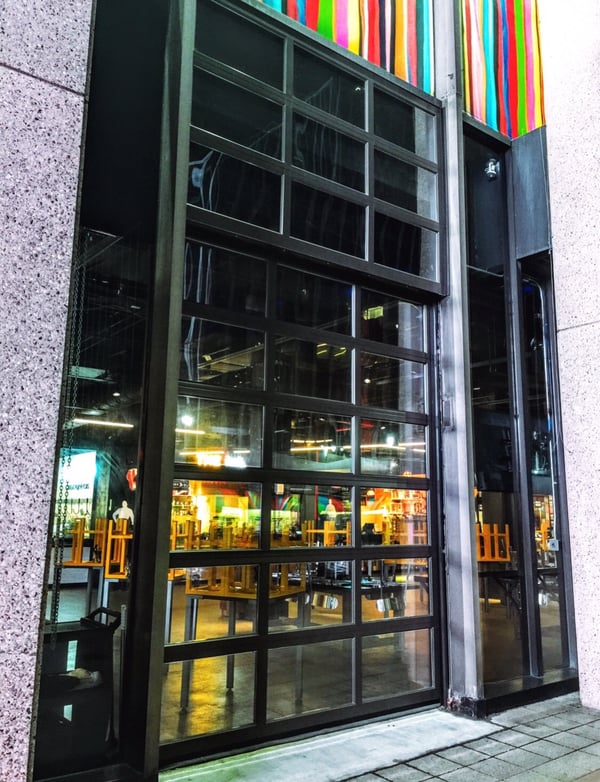

Sectional Glass Rollup Doors Gates Aluminum NYC Restaurant Storefornt



Sectional Glass Rollup Doors Gates Aluminum NYC Restaurant Storefornt

Sectional Glass Rollup Doors Gates Aluminum NYC Restaurant Storefornt

Schedule Service



For more information, please give us a call at 973-471-4060 or email us at: info@dockndoor.com

We service Northern New Jersey (Bergen, Passaic, Hudson, Union, Essex, Morris, Hudson, Hunterdon, Middlesex, Mercer and Somerset county/counties), Manhattan, New York City, Brooklyn, Queens, Staten Island, Bronx, Westchester and Rockland.

For 24 hour emergency service, please contact us at 973-471-4060.

Tags: Glass Garage Doors for your New York City Restaura, brooklyn glass garage doors, glass overhead doors, glass rollup gates, swing up glass doors, glass garage doors, rollup glass roller doors, glass rollup doors, nyc restaurant, restaurant garage doors
