Rolling Steel Doors - Stormtite™ AP Model 627

Our rolling steel doors (also known as roll-up steel doors, roll-up overhead doors, coiling doors, and upward coiling security grilles) are designed for durability, serviceability, and good looks. Each of our rolling service doors is computer-designed to your specifications, then solidly constructed to promote easy installation, trouble-free operation, and long life.

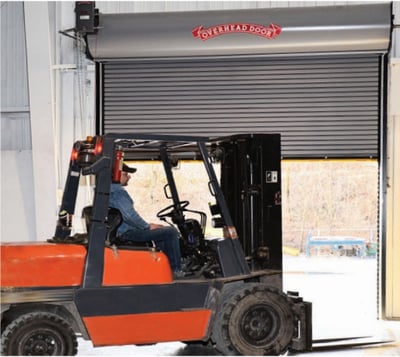

Stormtite Insulated High Performance Rolling DoorsStormtite™ AP Model 627: Advanced Performance Insulated Rolling Doors

Stormtite™ AP Model 627: Insulated & High-Performance Rolling Service Door

The Stormtite™ AP Model 627 is engineered to supply advanced performance in industrial and general commercial applications where thermal performance, climate control, and security are primary concerns.

- Advanced Performance: The Stormtite™ AP door system’s advanced performance answers the demand for more reliability, durability, security, flexibility, and thermal efficiency.

- Great Insulation: This roll-up door system presents the most advanced thermal performance values published by any major US manufacturer of insulated rolling steel doors, with an R-value of 10.9, U-value of 0.09, and a tested installed U-factor of 0.84. The superior construction of this rolling service door and the advanced design of the perimeter seals offer superior door protection against air leakage.

- Sound Performance: The sound performance of the Stormtite™ AP Model 627 furnishes a through curtain Sound Transmission Class (STC) rating of 28 and an installed system rating of 21.

Stormtite™ AP Model 627 Main Features:

✓ Max. standard width 30'4" (9246 mm)
✓ Max. standard height 19'4" (5893 mm)
✓ Curtain: 24 gauge galvanized steel front, 24 gauge galvanized steel back
✓ Slat profile Flat, insulated, type FIT-265
✓ Insulation Foamed-in-place, CFC and HCFC-free polyurethane
✓ R-value* 10.9 (1.91 W/Msq)
✓ U-factor† 0.84
✓ STC rating Through curtain 28; Installed system; 21
✓ Flame spread and smoke index Class A or 1
✓ Finish Gray, tan, brown or white
✓ Hood 24 ga. galvanized steel
✓ Wind load 20 psf
✓ Standard mounting Face-of-wall
✓ Operation Chain hoist
✓ Standard springs 20,000 cycle
✓ Advanced perimeter protection: Bottom weather seal, interior and exterior EPDM triple-finned guide brush weather seals, interior hood baffle, and lintel seal
✓ Guides 3-angle structural steel; black powder-coated
✓ Bottom bar Black powder-coated steel with vinyl weather seal
✓ Lock Padlockable chain keeper
✓ Warranty 24-month limited on the door or 3 years limited on door and operator system (when purchased together)



Options:

• Air infiltration package that meets requirements of IECC code, which includes: guide cover and cap; interior and exterior triple-finned brush guide seal, lintel seal, bottom astragal
• Between-jamb mounting
• Electric (RHX®, RSX®, RMX®) or crank operation
• Bottom sensing edge
• Sloping bottom bar
• Stainless steel (22 gauge front/24 gauge back) or aluminum slats
• PowderGuard® Zinc or Textured finishes available on the curtain, steel bottom bar angles, and guides
• PowderGuard® Premium powder coat paint finish in approximately 200 standard colors, or color-matched to specification
• Insulated vision lites uniformly spaced at 1” x 10” (25.4 mm x 254 mm)
• High cycle counterbalance with high usage package
• Wind load option available
• Cylinder lock
• Special application doors:
     − Oversized doors
     − Combination doors (2 doors on a single head plate)
     − Pass doors
